Built-In Adjustable Rev-Limit Control

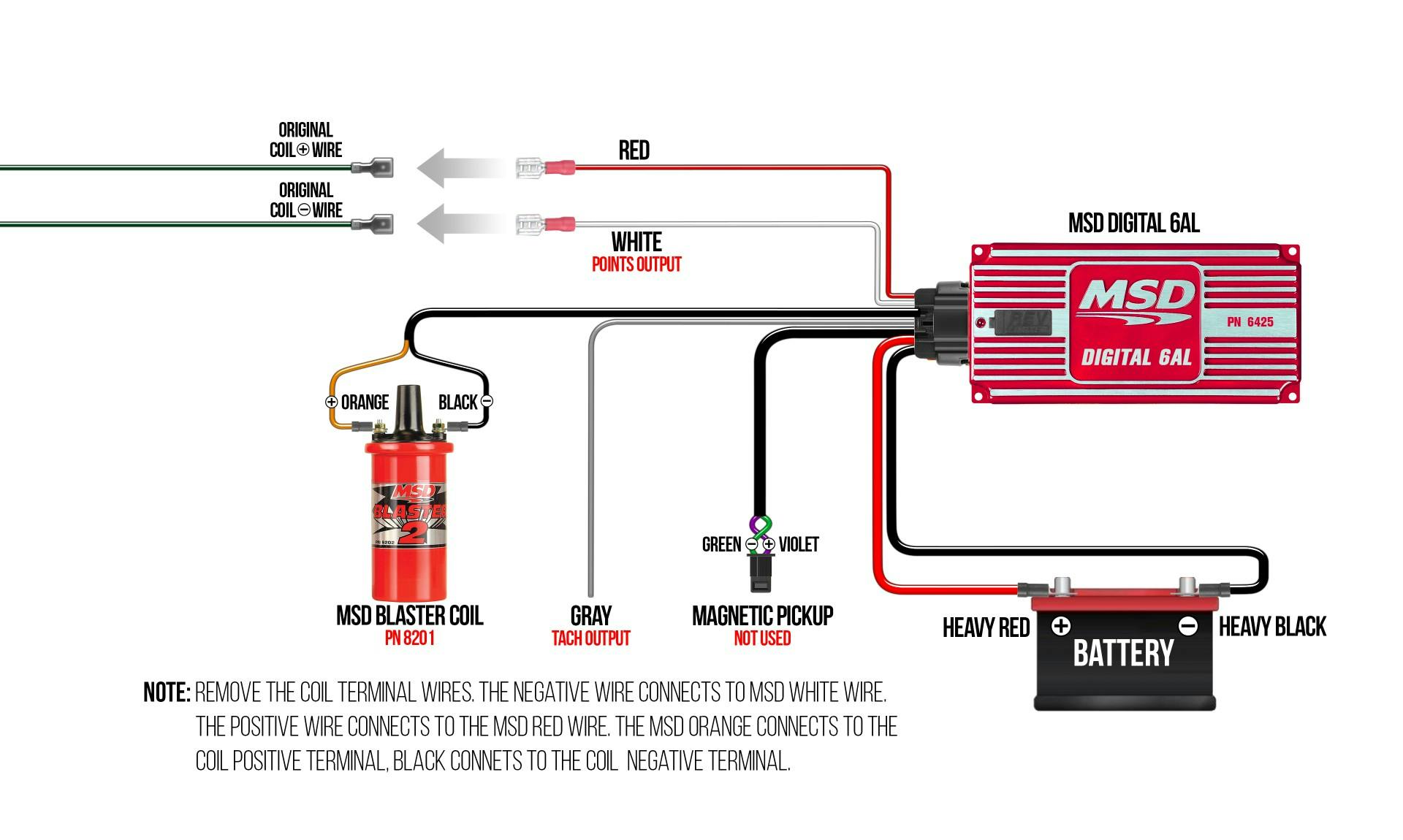

The Digital 6AL is supplied with the wiring harness and the components you'll need for installation. The 6AL is also supplied with vibration mounts. Both ignitions are compatible on 4, 6, or 8-cylinder engines with 12-volt, negative ground electrical systems. They'll accept trigger inputs from breaker points, amplifiers, and magnetic pickups.

High output with 530 volts and 135mJ of spark energy
Efficient components use less current to produce more power
Set an rpm limit with two rotary dials in 100 rpm increments
Built-in LED for system checks
All wires exit through a locked, sealed connector
Compatible with 4, 6 or 8-cylinder engines

Information:

CARB EO: D-40-43

Attributes
ASIN	B004EGZU42
Brand	MSD, MSD
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Category	Ignition, Ignition
Color	Red, Red
Country of Origin (Primary)	CN
Current Draw	1.1 Amp per 1000 RPM, .7 Amp per 1,000 RPM
Emission Code	1, 1, Legal US
Features	Rev Limiter, Rev Limiter
GTIN	00085132064250
Harmonized Tariff Code (Schedule B)	8511804000
Hazardous Material Code	N
Ignition Type	Performance
Life Cycle Status Code	Available to Order
NAFTA Preference Criterion Code	B
Primary Voltage	520-540, 520-540 Volts
Product Type	Digital 6AL Ignition Control Box, Digital 6AL Ignition Control Box
RPM	11000
RPM Range	11,000 RPM, 11,000 RPM
SDR Required Flag	N
Sale Category	Ignition
Secondary Voltage	45000, 45,000 Volts
Series	6-Series Ignitions
Spark Duration	20 Degree Crankshaft Rotation
Spark Energy	135-145 mJ per spark, 135-145 mJ per spark
Sub Category	Control Modules, Control Modules
Subcategory	Ignition Boxes
Voltage	12-15 V; 7 V Start
Voltage Required	12-15 Volts, 7 Volt Start, 12-15 Volts, 7 Volt Start
Warning	California Proposition 65, California Proposition 65
Warranty	Limited 1 Year Warranty, Manufacturer's Limited 1 Year Warranty
Warranty Time	12
Weight and Size	1.7 lbs., 8"L x 4"W x 1.825"H, 1.7 lbs., 8"L x 4"W x 1.825"H
part type	Ignition Control Module
