For GM Gen-III engines such as the LS1, 3, or 6, these wires are perfect when you relocate the coils. Both 90° and Multi-Angle boots are pre-crimped.

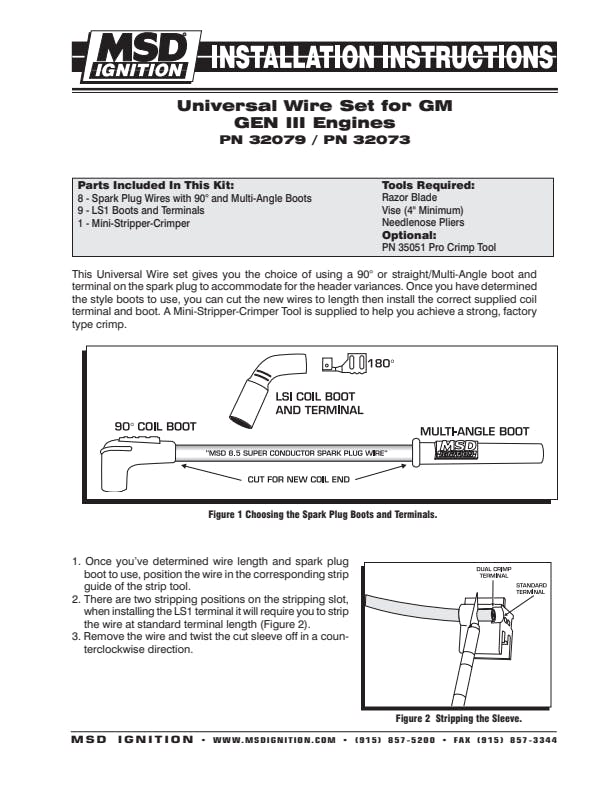

Our Universal spark plug wire sets come with the spark plug terminal and boot installed on both ends. LS Boots and terminals are included so you can cut the wire to the desired length, then install the LS terminal with the supplied Mini-Stripper-Crimper. It's a little more work, but in the end it will be worth it.
- Extra long 8.5mm wire so you can cut to your desired length
- LS Coil Boots and Terminals included
- Includes Mini-Stripper-Crimper
- Wire Lengths: 2 - 56", 2 - 50", 2 - 42", 2 - 32"
Information:
****Universal Wire set gives you the choice of using a 90° or Straight/Multi-Angle boot and terminal on the spark plug to accommodate for the header variances. Once you have determined the style boots to use, you can cut wires to length then install the correct supplied LS coil terminal and boot****
Application Summary:
| Year |
Make/Model |
| 2004-2005 |
Cadillac CTS |
| 1998-2002 |
Chevrolet Camaro |
| 1997-2004 |
Chevrolet Corvette |
| 1998-2002 |
Pontiac Firebird |
| 2004 |
Pontiac GTO |
| Attributes |
| Application |
GM LS Engines |
| ASIN |
B000N8GH56 |
| Boot Material |
Silicone |
| Boot Type |
Multi-Angle |
| Brand |
MSD, MSD |
| California Proposition 65 |
No |
| Category |
Ignition, Ignition |
| Color |
Red, Red |
| Core |
Copper, Copper |
| Country of Origin (Primary) |
MX |
| Emission Code |
5, 5 |
| Engine |
Chevy LS Series |
| Engine Make/Size |
OEM |
| Harmonized Tariff Code (Schedule B) |
8544300000 |
| Hazardous Material Code |
N |
| Insulation Color |
Red |
| Life Cycle Status Code |
Available to Order |
| NAFTA Preference Criterion Code |
B |
| Outside Diameter |
8 |
| part type |
Spark Plug Wire Set |
| Position |
N/A |
| Product Type |
Spark Plug Wires, Spark Plug Wires |
| Resistance |
40-50 Ohms Per Foot, 40-50 Ohms Per Foot |
| SDR Required Flag |
N |
| Series |
8.5mm Super Conductor Spark Plug Wires |
| Spark Plug Boot Angle |
90/180 degree, 90/180 |
| Spark Plug End Boot Degree |
90 |
| Sub Category |
Ignition Wire and Related Components |
| Subcategory |
Spark Plug Wires |
| Universal Or Specific Fit |
Specific |
| Warning |
California Proposition 65 |
| Warranty |
Limited 1 Year Warranty, Manufacturer's Limited 1 Year Warranty |
| Warranty Time |
12 |
| Wire Diameter |
8.5mm, 8.5 |
| Wire Separators Included |
No |
| Wire Series |
8.5 Super Conductor, 8.5 Super Conductor |
| GTIN |
00085132320790 |
