Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
By replacing your current Subaru Legacy radiator with a Mishimoto performance aluminum radiator, you will notice a cooler more efficient running engine.With its lightweight dual core, 100-percent brazed aluminum, and polished tank ends, installing a direct OEM fit Mishimoto radiator is effortless with no cutting or modification is required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty

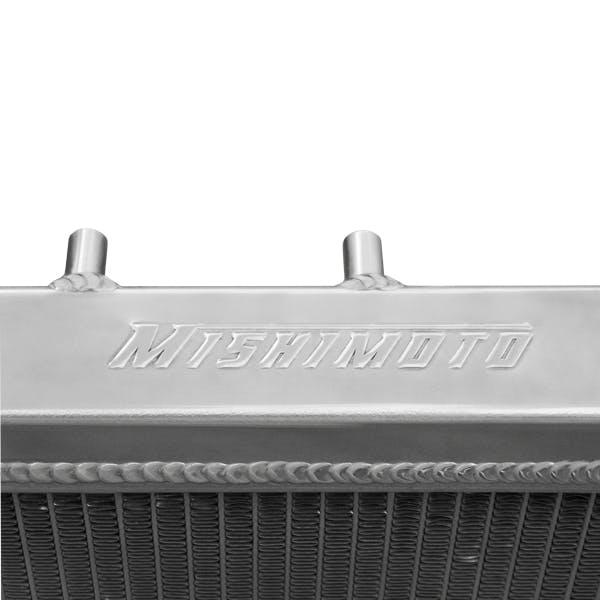

- Full aluminum construction including durable, TIG-welded end tanks
- Ideal replacement for the failure prone stock radiator
- Increased fluid capacity and optimal heat dissipation
Application Summary:
| Year |
Make/Model |
| 2003-2006 |
Subaru Baja |
| 2000-2004 |
Subaru Legacy |
| 2000-2004 |
Subaru Outback |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
13.66 |
| Core Length |
27.24 |
| Core Material |
Aluminum |
| Core Row Quantity |
2 |
| Core Thickness |
1.65 |
| Country of Origin (Primary) |
CN |
| Dimensions |
28.03in x 19.25in x 2.15in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
2.03 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.5 |
| Inlet Location |
Top Left |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.5 |
| Outlet Location |
Bottom Left |
| Overall Height |
28.03 |
| Overall Length |
19.25 |
| Overall Width |
2.15 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2000-2004 Subaru Legacy 2.5L |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Ideal replacement for the failure prone stock radiator |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |

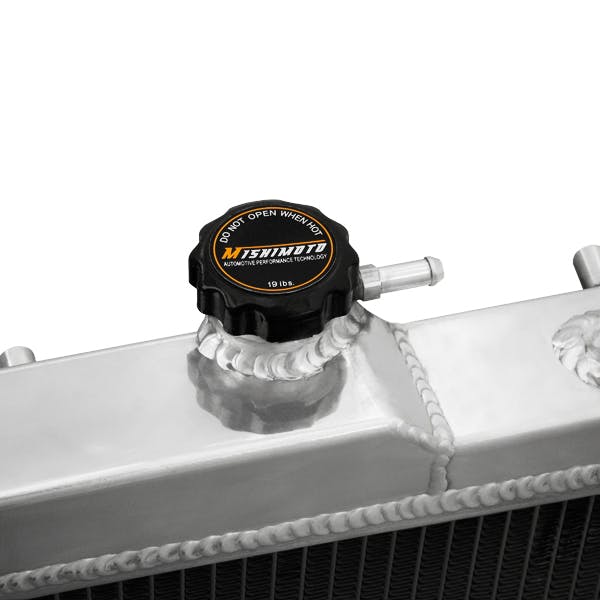

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint06 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 2000-2004 Subaru Legacy 2.5L |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Ideal replacement for the failure prone stock radiator |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint6 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint7 |
Mishimoto Lifetime Warranty |
| SellingPoint8 |
N/A |
| SellingPoint9 |
N/A |
| TechSpec Applications |
N/A |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
13.66 |
| TechSpec Core Length (in) |
27.24 |
| TechSpec Core Thickness (in) |
1.65 |
| TechSpec DPI |
2331 |
| TechSpec Drain Plug Thread Size |
N/A |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
2.03 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug |
| TechSpec Inlet (in) |
1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.----Non-turbocharged models will require blocking of the coolant port on upper passenger side for proper function. |
| TechSpec Outlet (in) |
1.5 |
| TechSpec Overall Height (in) |
28.03 |
| TechSpec Overall Length (in) |
19.25 |
| TechSpec Overall Width (in) |
2.15 |
| TechSpec Overall Width (ins) |
2.15 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354804539 |
