Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
it bolts right up to the stock fan shroud, allowing for easy installation. Have a gas-powered Super Duty or Excursion in your fleet? We’ve got you covered, too, as this radiator is a direct replacement for the 5.4L and 6.8L Triton models as well! Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature Lifetime Warranty.

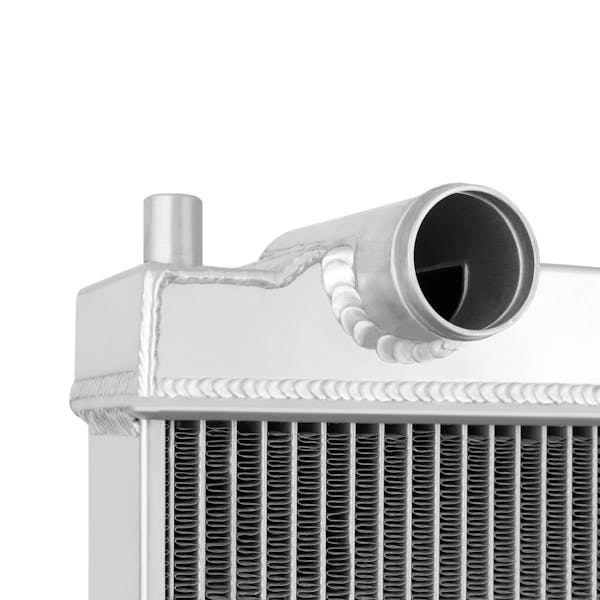

- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
- Increased fluid capacity and superior heat dissipation
Application Summary:
| Year |
Make/Model |
| 2000-2005 |
Ford Excursion |
| 1999-2004 |
Ford F-250 Super Duty |
| 1999-2004 |
Ford F-350 Super Duty |
| 1999-2004 |
Ford F-450 Super Duty |
| 1999-2003 |
Ford F-550 Super Duty |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
26.5 |
| Core Length |
29.4 |
| Core Material |
Aluminum |
| Core Row Quantity |
2 |
| Core Thickness |
2.2 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
9.25 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.77 |
| Inlet Location |
Top Left |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.77 |
| Outlet Location |
Bottom Right |
| Overall Height |
30 |
| Overall Length |
31.7 |
| Overall Width |
4.7 |
| Radiator Cap Included |
No |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for 1999-2005 F-250, 350, 450, 550 and Excursion with the 5.4L, 6.8L, and 7.3L |
| SellingPoint02 |
Full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation |
| SellingPoint04 |
Increased fluid capacity and superior heat dissipation |
| SellingPoint05 |
Perfect upgrade to the stock plastic end tank radiator |
| SellingPoint06 |
Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments |
| SellingPoint07 |
Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for 1999-2003 Ford trucks equipped with the 7.3L Powerstroke |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation |
| SellingPoint4 |
Increased fluid capacity and superior heat dissipation |
| SellingPoint5 |
Perfect upgrade to the stock plastic end tank radiator |
| SellingPoint6 |
Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments |
| SellingPoint7 |
Includes Magnetic Drain |
| SellingPoint8 |
Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint9 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
1999-2004 Ford F-250 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-350 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-450 w/ 6.8L/7.3L--1999-2003 Ford F-550 w/ 6.8L/7.3L--2000-2005 Ford Excursion w/ 5.4L/6.8L/7.3 |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
29.84 |
| TechSpec Core Length (in) |
26.46 |
| TechSpec Core Thickness (in) |
2.2 |
| TechSpec DPI |
2171 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
9.25 |
| TechSpec Includes |

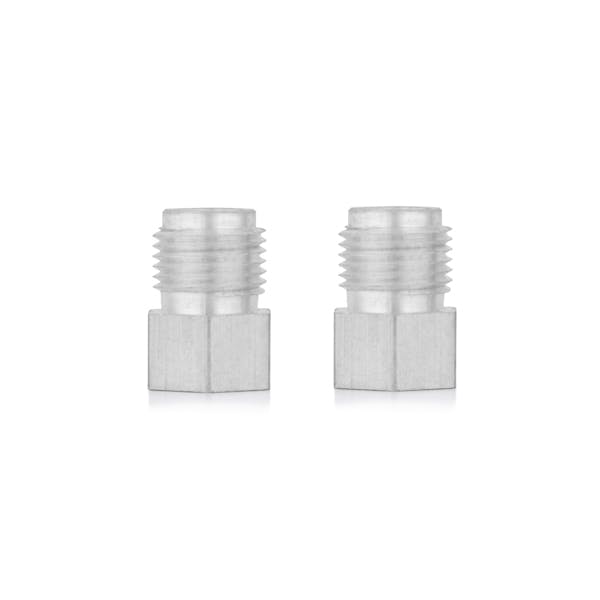

Mishimoto Radiator-- Magnetic Drain Plug--(4) Transmission Adapters--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.77 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
The transmission cooler fittings are: 1/2”-20 SAE and 5/8”-18 SAE female flare fittings. This product comes with two adapters of each size to ensure fitment with your vehicle |
| TechSpec Outlet (in) |
1.77 |
| TechSpec Overall Height (in) |
31.73 |
| TechSpec Overall Length (in) |
30.21 |
| TechSpec Overall Width (in) |
4.69 |
| TechSpec Overall Width (ins) |
4.7 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354810363 |
