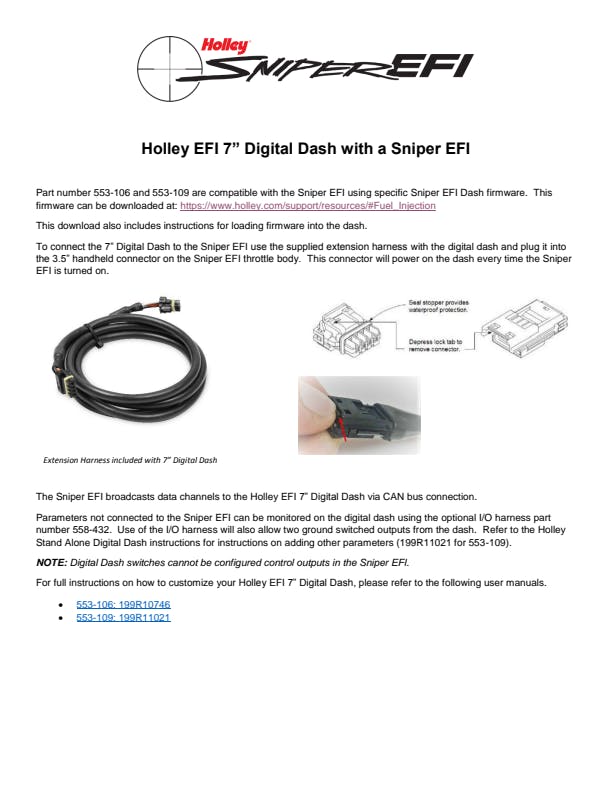

Compatible with Holley EFI, Sniper 1, and Terminator X

Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost-effective? No need to look any further as Holley has created a full-color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost-effective package! Holley's standalone digital dash has great features such as; a weather-resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts, and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data-logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver, or a show winning roadster.

Compact, customizable dash for use in a variety of applications
Free Software and Firmware upgrades, providing a future proof display solution
Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS
7” low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
800x480 resolution with auto brightness and dimming
Operating voltage min 8V - 20V
Includes USB GPS for Speedometer display with a magnetic base for a quick and clean install
Weather resistant aluminum housing with flexible mounting options
Completely customizable layouts, with multiple default configurations to get you running in no time!
Multiple gauge & indicator types with limitless customization options
Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual Switch Panel (replaces the need for physical switches) *2 switched ground outputs to be added to trigger an external relay*
Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle
Powerful data log software provides in-depth analysis (10 samples/sec) of all inputs and outputs, including the integrated 3 axis accelerometer and USB GPS-no need for separate data logging boxes
A variety of additional sensors are available for use with the dash, including fuel pressure, nitrous pressure, boost, with more to come!
Pair with a Holley EFI LED Light Bar (PN 553-107) for a truly customizable solution!
User definable warnings for any input
Configurable progressive shift lights and light bar
Expandable internal storage on micro SD card

Information:

Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations

Attributes
Brand	Holley EFI, Holley EFI
California Proposition 65	No
Category	Body
Country of Origin (Primary)	CA
Depth	1.000 in., 1"
Depth (in.)	1
Emission Code	5, 5
GTIN	00090127734377
Harmonized Tariff Code (Schedule B)	8409915085
Hazardous Material Code	N
Height	4.625", 4.625"
Item Height	4.625 in.
Life Cycle Status Code	Available to Order
Maximum Gauge Diameter	Programmable, Programmable
Minimum Gauge Diameter	Programmable, Programmable
NAFTA Preference Criterion Code	D
Product Type	EFI Part, Digital Dash
SDR Required Flag	N
Sale Category	Gauges and Gauge Accessories
Screen Size	7 Diagonal, 7" Diagonal
Screen Type	Resistive Touch Screen, Resistive touch screen
Sub Category	Instrument Panel
Warning	California Proposition 65, California Proposition 65
Width	7.500 in., 7.5"
Width (in.)	7.5
part type	Electronic Multi-Purpose Gauge
